CLIMBERS
| Climbers for wooden and concrete posts are used as a protection equipment for working on a wooden and concrete posts. Safe and comfortable work electro and PTT workers is secured with our own construction of all types of climbers, which lasts for 30 years. |
CLIMBERS FOR WOODEN POSTS PDS
Climbers are adjusted with SRPS Z.Bl.O55-Climbers for wooden posts for wirings (previously standards JUS Z.B1.055).
Quality control and approved by IMS Institute Belgrade.
|
Type |
PDS-220 |
PDS-240 |
PDS-260 |
PDS-280 |
PDS-300 |
| Diameter of post (mm) |
120-220 |
140-240 |
160-260 |
180-280 |
210-280 |
| Weight (kg) |
3.10 |
3.20 |
3.30 |
3.40 |
3.50 |
CLIMBERS FOR CONCRETE POSTS PU
Constructive solution for these climbers based on joint-sprocket mechanism, allows easy adjustment of range of the port in this climber.
The materials for this climber are carefully chosen, and thermally processed. Quality control and approved by IMS Institute Belgrade.

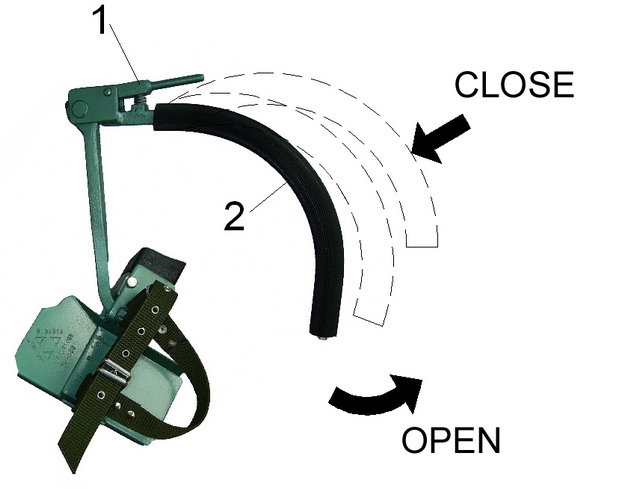

Manual:
Pressing the arm, the hook is liberated and is possible to open the port of climber as wanted, to fit the diameter of the post. By letting off the arm, the chosen port of range is fixed.
For smaller diameters of posts, the arm of a climber is closed simply by putting the hook against the post. |
Type |
Pu-310 |
Pu-400 |
Pu-650 |
| Diameter of posts (mm) |
140-280 |
220-380 |
280-650 |
| Type of post |
High voltage supporting posts 10kV
|
Low and high voltage angular posts 10kV/40deg. |
High voltage angular posts 10kV/60deg. |
| Weight (kg) |
6.50 |
7 |
8 |
CLIMBERS FOR CONCRETE POSTS Pm, Pv, Pn
Construction solution for this climber is based on a hook as an adjusting element, which is easily and fine adjusted to the diameter of a post.
Quality control and approved by IMS Institute Beograd. |
Type |
Pm-310 |
Pv-400 |
Pn-500 |
| Diameter of posts (mm) |
140-280 |
220-380 |
280-500 |
| Type of post |
High voltage supporting posts 10kV
|
Low and high voltage angular posts 10kV/40deg. |
High voltage angular posts 10kV/60deg. |
| Weight (kg) |
6.80 |
7.30 |
7.60 |
CLIMBERS FOR CONCRETE POSTS PB
New construction of fixed climbers for concrete posts is especially convenient for work in cold and humid weather conditions.
Cylindrical - spiral shape of steal hook with the help of metal reverberator, allows almost ideal fitting of climbersagainst the post, and this lowers possibility of skidding to a minimum.
Quality control and approved by IMS Institute Belgrade. |
Type |
PB-310 |
PB-400 |
PB-500 |
| Diameter of posts (mm) |
140-280 |
220-380 |
280-480 |
| Type of post |
High voltage supporting posts 10kV
|
Low and high voltage angular posts 10kV/40deg. |
High voltage angular posts 10kV/60deg. |
| Weight (kg) |
4.60 |
4.80 |
6.50 |
RIVET PLIERS
Used for merging all kinds of tins and profiles by clenching. |
TYPE "A" -
singlehanded and TYPE "B" -
doublehanded
 |
 |
This tool is very practical for work with Al, Cu and metal rivets. Double sided capsule with possibility of adjusting, allows plucking the needle of a rivet with single closing of arms or, exceptionally closing twice.
Type |
"A"-single handed |
"B"-double handed |
| Diameter of rivet (mm) |
2.4-4 |
up to 4.8 |
| Max. body diameter of rivet (mm) |
2.2 |
2.8 |
| Lenght of rivet (mm) |
clenching thickness plus 3-4 mm
|
| Diameter of a hole (mm) |
rivet thickness plus 0.1 mm |
Manual
For inserting the needle of rivet it is necessary to completely open arm of pliers. After clenching, by turning the pliers with the guide towards down and reopening arms of pliers, plucked needle of falls out of the guide and the pliers are ready for use again.
Before using pliers, it is necessary to oil it from inside, which lowers the strength needed for clenching and also extends the life of pliers.
With adequate use of pliers it is possible to clench near 15000 rivets without repairing or replacing pressing jaws, which are the essential part of pliers. |
HOISTS/PULLERS
PULLER DOUBLESIDED ZD-20 i ZD-45
Double sided puller (tirfor hoist) is relatively small toll for pulling, holding, lifting and lowering all kinds of load. Puller has a double effect wich allows that every move of lever back and forth tightens or relaxes the metal rope.
Quality of this product was controlled and certified by IMS Beograd Insitute from Belgrade, and in serial production each finished product is controlled. Metal rope with the hook is tested and certified by "Novkabel" Novi Sad, for each serie of production.
Metal rope with the steal core is done using the SIL method, with diameter 12.5 mm for type ZD-20 and diameter 18 mm for type ZD-45. Upon customer request we deliver double sided pullers with rope length different from standard ones.
High degree of safety in use, simple and easy maintenance and small weight are basic advantages over other similar products.
Manual:
Putting in the rope: using the arm R turn point E , in position 0 (opening of press jaws). Put the rope through the hoist. Put the point E in position Z ( closing the press Jaws). The toot is now ready for use.
Forward – Tension: Use the arm R and lever A.
Back – Release: Use the arm R and lever B. |
Type |
ZD - 20 |
ZD - 45 |
| Dimension (mm) |
480x200x40 |
700x250x75 |
| Max. load weight (t) |
2 |
4.5 |
| Diameter of rope (mm) |
12.5 |
18 |
| Lenght of rope (m) |
12 |
10 |
| Weight (without rope) (kg) |
14 |
30 |
SMALL HOIST BE-BE 800 i BE-BE 1250
It is used for pulling, lifting up and lowering down various kinds of load / up to 800 kg (BE-BE 800), or up to 1250 kg (BE-BE 1250).
The product was tested by "IMS Institute", center for metal in Belgrade. We control each produced peace by overloading it 100%.
With adequate use and minimal maintenance long life of this tool is certain.
|
Type |
"BE-BE 800" |
"BE-BE 1250" |
| Max. load weight (t) |
0,8 |
1,25 |
| Diameter of rope (mm) |
6 |
7 |
| Lenght of rope (m) |
4,6 |
4,6 |
| Weight (with rope) (kg) |
5,3 |
5,6 |
Hook DIN 689 nr.19
|
PULLING TOGGLE 16-95
It is used for holding and pulling of iron, Al and Cu conductors. The toggle can work with the conductors which section surfaces are 16-95 mm, or 75 - 150 mm.
Should be used together with small hoist "BE - BE" or some similar product.
Main characteristics :
- simple construction;
- universal field of use;
- small weight;
- high force of holding;
- completely safe for the conductor (or other object that it is holding). |
|
